FEATURES
- Supplied with Two Socket Adapters for Compatibility with a Variety of Sockets
- Equipped with lock-pin style ratchet mechanism is employed, allowing for use as a pass-through ratchet wrench to tighten 13mm nut onto M8 threaded rod
- Easy-to-grip small diameter grip for more comfort and control
- 47.5 N·m (420 in.lbs.) of maximum torque and 0-800 RPM

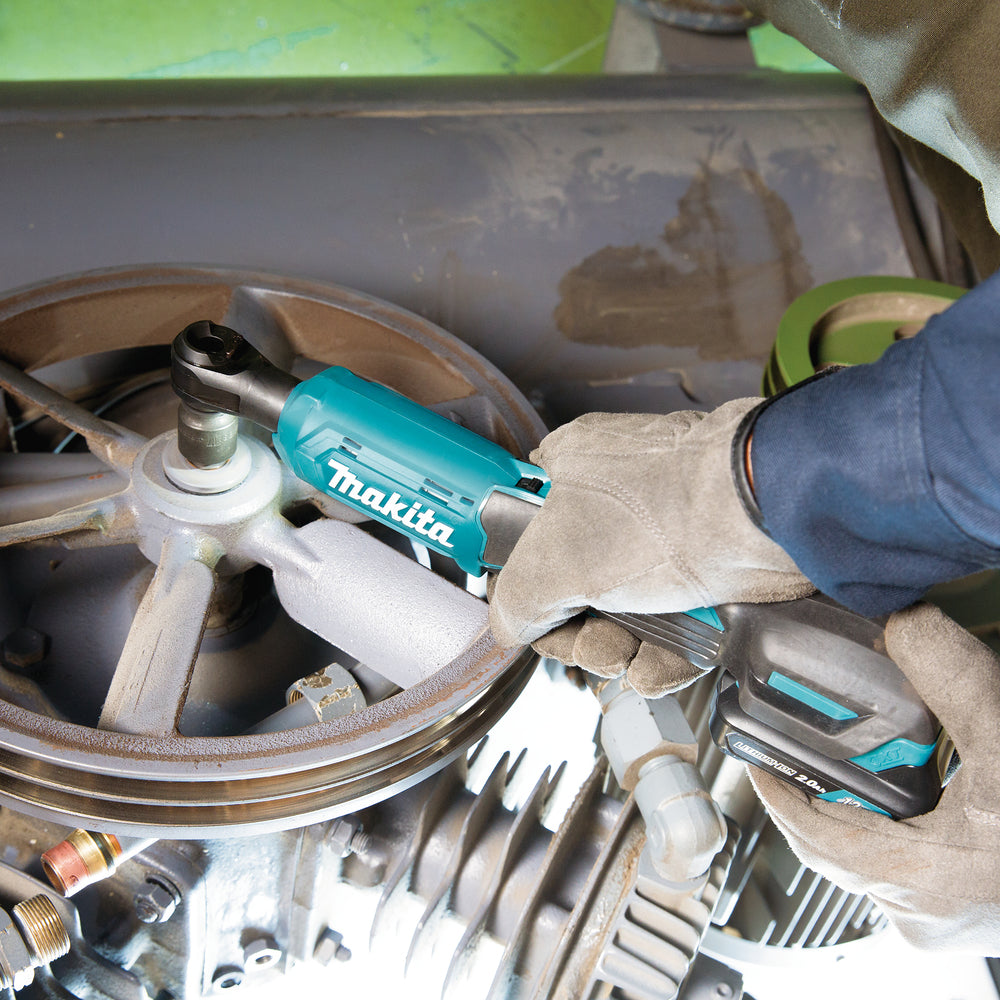

- Fastens nuts on threaded rods
- Can be also used as a hand ratchet wrench

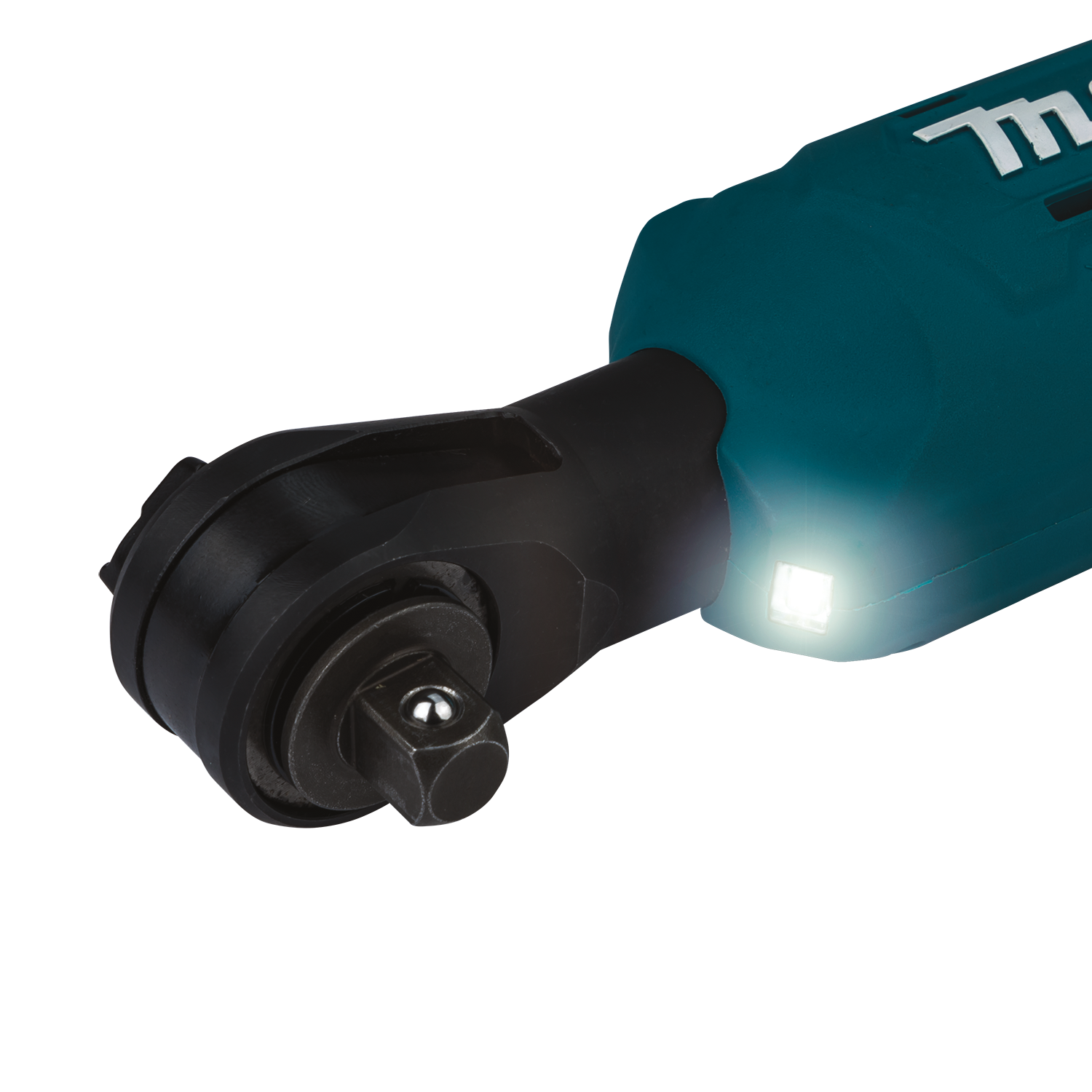

- LED light with preglow and afterglow functions illuminates the work area
- Forward/reverse rotation change
- Electric brake for maximum productivity
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Slide style battery and improved ergonomic grip
- Multi-contact terminals ensure stable contact with battery
- Part of the expanding 12Vmax CXT series, combining performance with superior ergonomics in a compact size
SPECIFICATIONS
| Capacity | Standard Bolt: M5 – M12 (3/16 – 1/2″) |
| High Strength Bolt: M5 – M10 (3/16 – 3/8″) | |
| Square Drive | 9.5 / 6.35 mm (3/8 / 1/4″) |
| No Load Speed (RPM) | 0 – 800 |
| Max Fastening Torque | 47.5 N·m (420 in.lbs.) |
| Max Output | 250 W |
| Vibration Level | 2.5 m/s² or less |
| Vibration K Factor | 1.5 m/s² |
| Sound Pressure Level | 74 dB(A) |
| Noise K Factor | 3 dB(A) |
| Dimensions (L x W x H) | w/ BL1016/BL1021B: 341 x 67 x 63 mm (13-7/16 x 2-5/8 x 2-1/2″) |
| w/ BL1041B: 341 x 67 x 84 mm (13-7/16 x 2-5/8 x 3-5/16″) | |
| Net weight | 1.0 – 1.2 kg (2.3 – 2.7 lbs.) |
