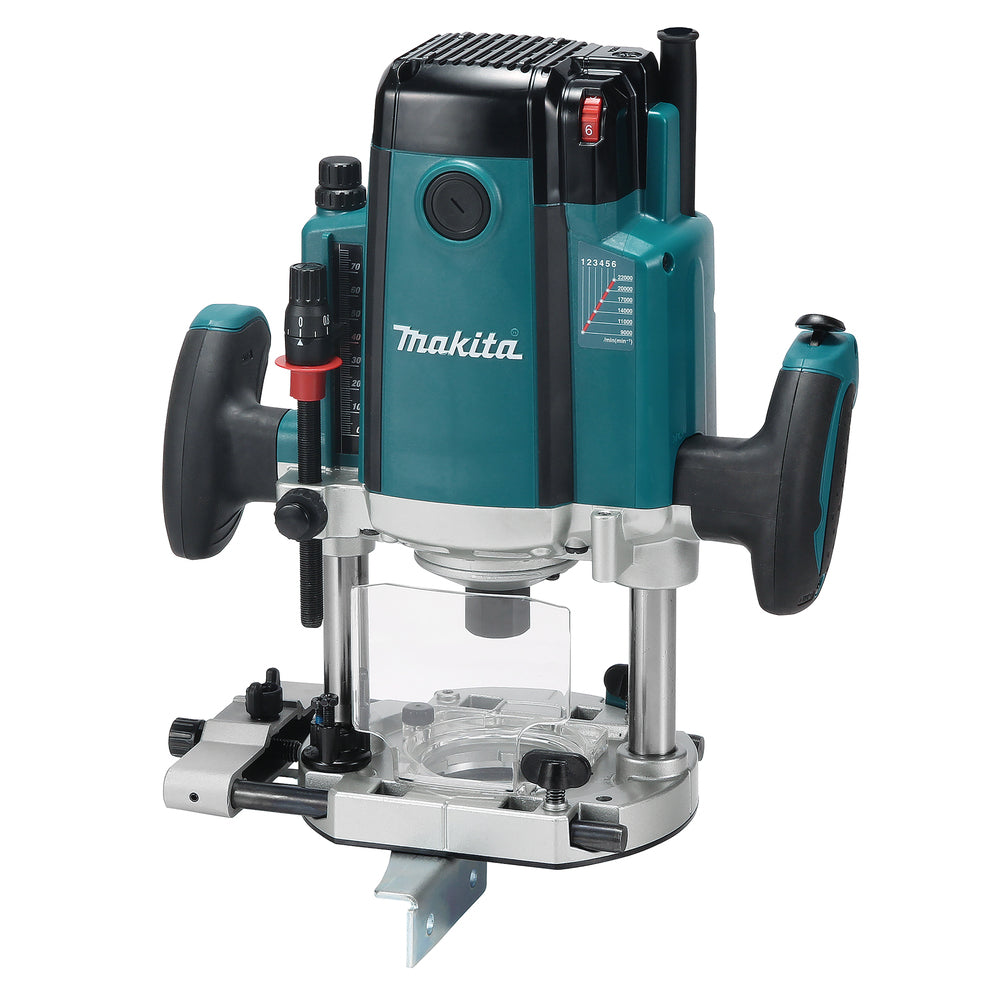

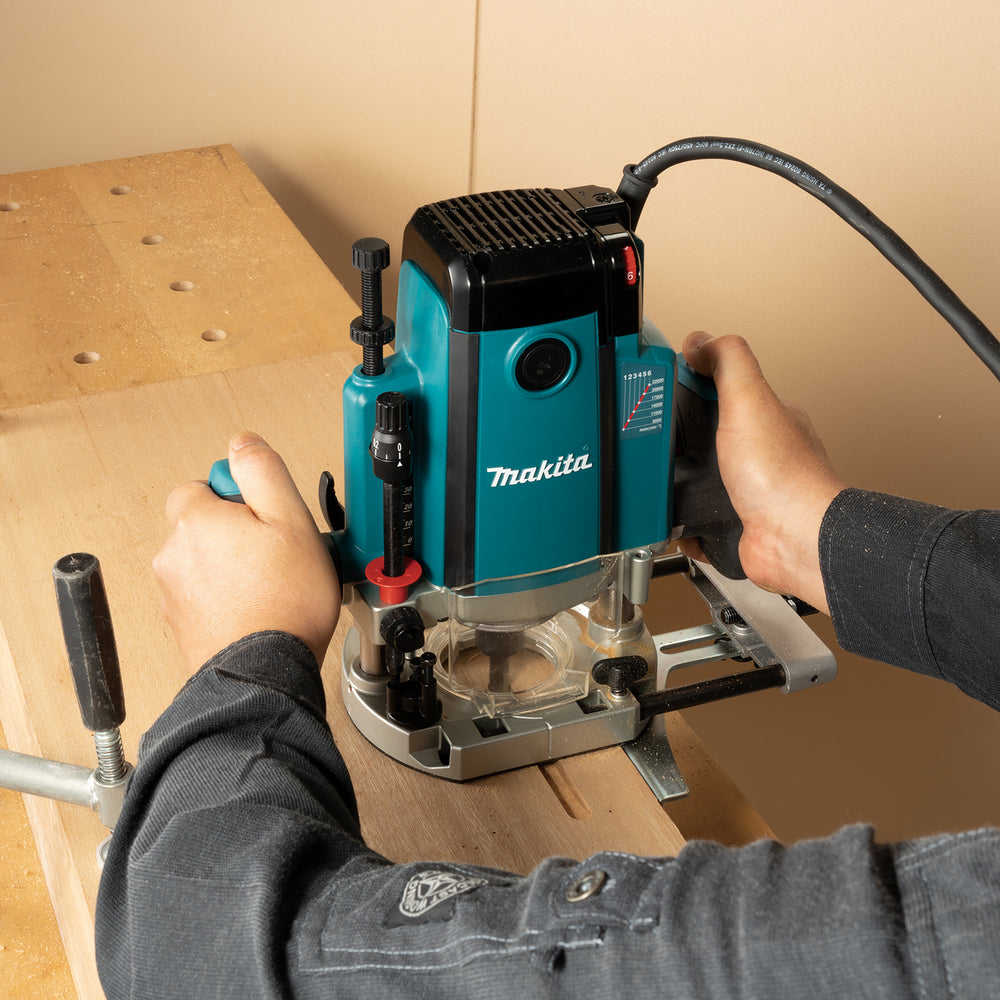

RP2303 Plunge Router

FEATURES:

• 12, 12.7 mm (15/32, 1/2″) 2,100 W Variable Speed Plunge Router with Electric Brake, Soft Start, Twin LED Lights
• Developed based on RP2301FC, and designed for compliance with EN62841-2-17
• Anti-restart function minimizes accidental start-up
• Combines power and precision for the most demanding routing applications
• Powerful 2,100 W motor delivers 9,000-23,000 RPM for the most demanding applications
• Constant speed control maintains constant speed under load
• Variable speed control dial enables user to match the speed to the application
• Soft start feature for smooth start-ups
• Electric brake for maximum productivity and increased operator safety
• Deep 0 – 70 mm (0 – 2-3/4″) plunge depth capacity for easy penetration into work piece
• Linear ball bearings for smooth plunge action and superior performance
• Quick release plunge depth adjustment with micro control along with 3 preset depth stops for added precision
• Twin LED lights with afterglow feature illuminate the work area
• Oversized ball bearing construction for longer tool life
• Ergonomic rubberized handles with built-in large two-finger switch for added control and use
• Conveniently located plunge lock lever for efficient operation
• Shaft lock for quick and easy bit changes
• Tool-less templet guide system for quick and easy installation and removal
• Trigger switch with a lock button for lock-off and lock-on functions
• Built in fan with labyrinth construction minimizes dust from entering the tool for longer tool life.
• Easy-to-read depth scales. Chip deflector engineered to direct chips away from the operator.
• Includes extended depth control knob for use when mounted under the table.
• Can be placed upside down when replacing accessories or not in use.
• Can be connected to dust extraction system with optional dust nozzle.
• Externally accessible brushes for easy serviceability.
• Double insulated
