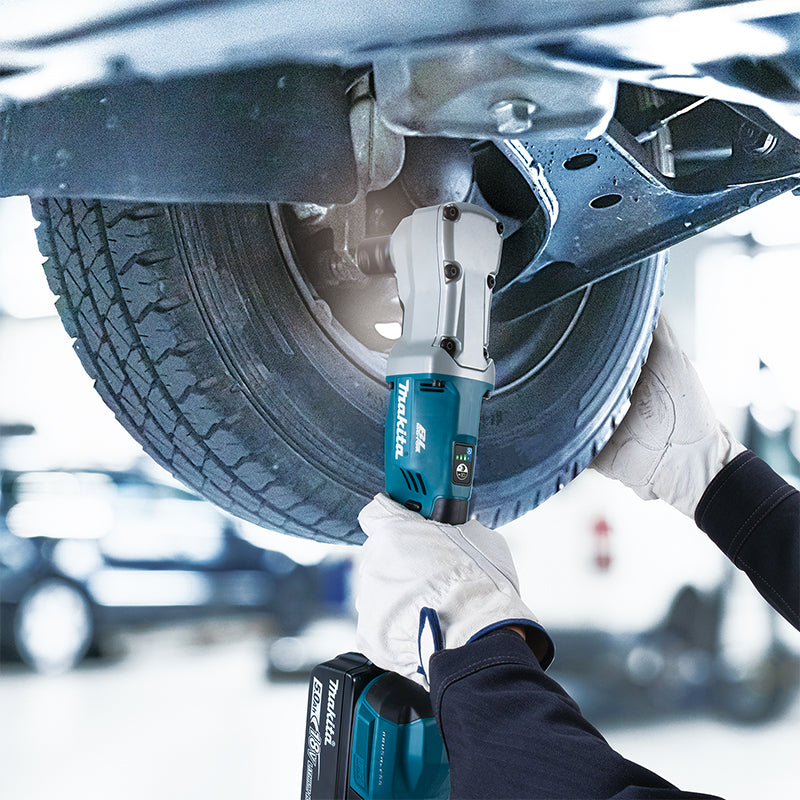

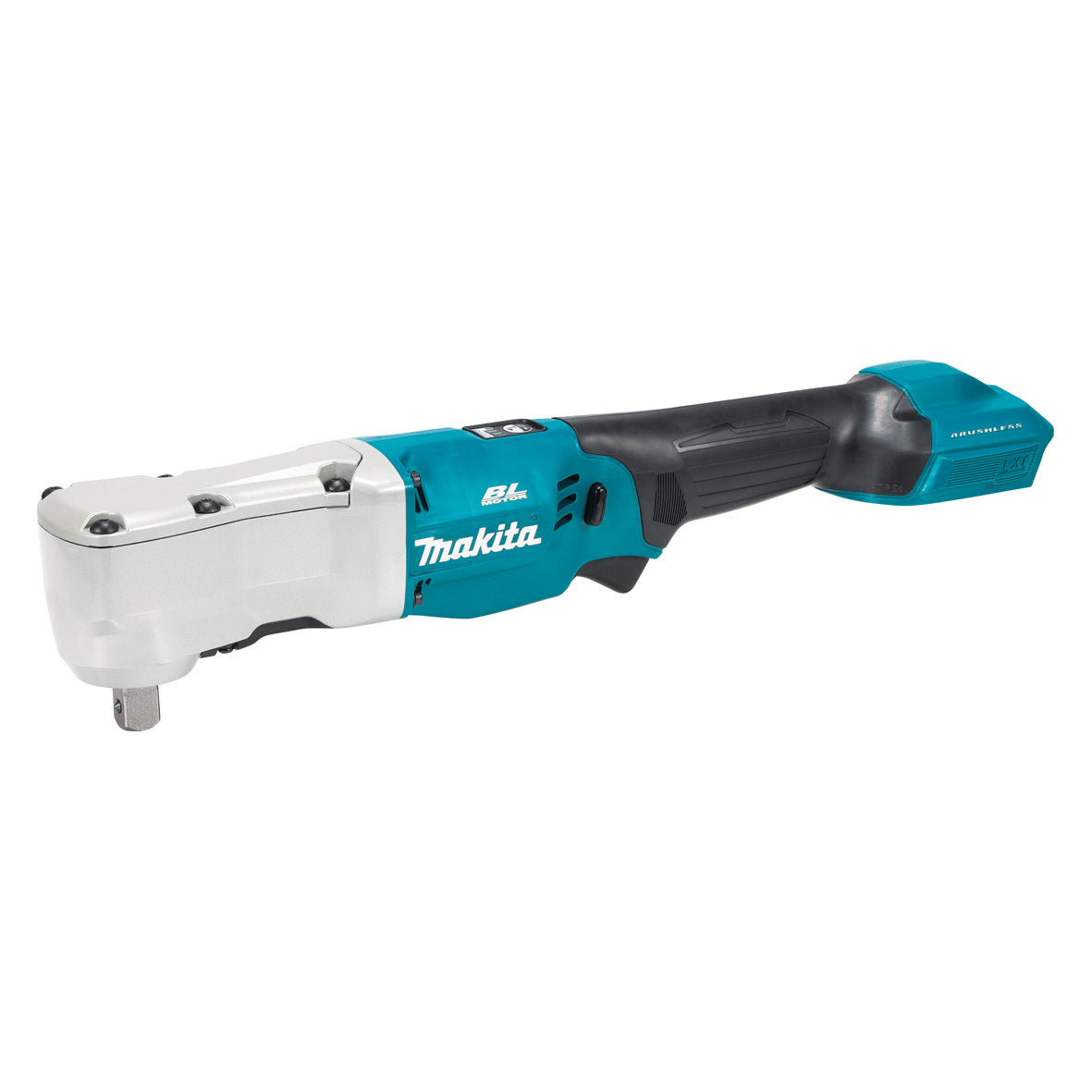

- This model, having a high torque that can loosen even stuck bolts, has been developed targeted at work in tight spaces such as automobile and agricultural machinery maintenance.
- Drive size: 12.7mm (1/2″) Square, Pin detent.
- High torque is achieved by increasing hammer inertia, resulting in higher performance than competitors’ models.
- LED job light;
– An LED is positioned below the angle head to improve visibility when working in tight spaces.
– The brightness (3 stages) can be changed by pressing and holding the mode switch button. - Excellent maneuverability; the center of gravity is moved closer to the switch to reduce the strain on the user’s arm.
- Slim diameter due to the use of a slide battery for an ergonomically designed handle.
- Slim tool head that makes it easy to use in tight spaces.
- Equipped with an automatic impact stop system in forward/reverse rotation mode, making it suitable for performing work in tight spaces.
| Max Fastening Torque | 310 – 340 N·m |
| Nut-busting Torque | 500 – 530 N·m |
| Square Drive | 12.7 mm (1/2″) |
| Switch | Yes |
|
No Load Speed
|
Hard / Med. / Soft: 0 – 3,200 / 0 – 1,500 / 0 – 1,000 minˉ¹ |
| Impacts per minute | Hard / Med. / Soft: 0 – 4,000 / 0 – 2,800 / 0 – 1,800 minˉ¹ |
| Head Height | 81.0 mm (3-3/16″) |
| Vibration Level | 14.4 m/s² (EN62841-2-2) |
| Uncertainty (K) for Vibration | 1.5 m/s² (EN62841-2-2) |
| Sound Pressure Level | 100 dB (A) (EN62841-2-2) |
| Sound Power Level | 108 dB (A) (EN62841-2-2) |
| Uncertainty (K) for Noise | 3 dB (A) (EN62841-2-2) |
| Dimensions (L x W x H): | 414 x 80 x 92 mm (16-1/4 x 3-1/8 x 3-5/8″) |
| Net weight | 1.8 – 2.1 kg |
