FEATURES

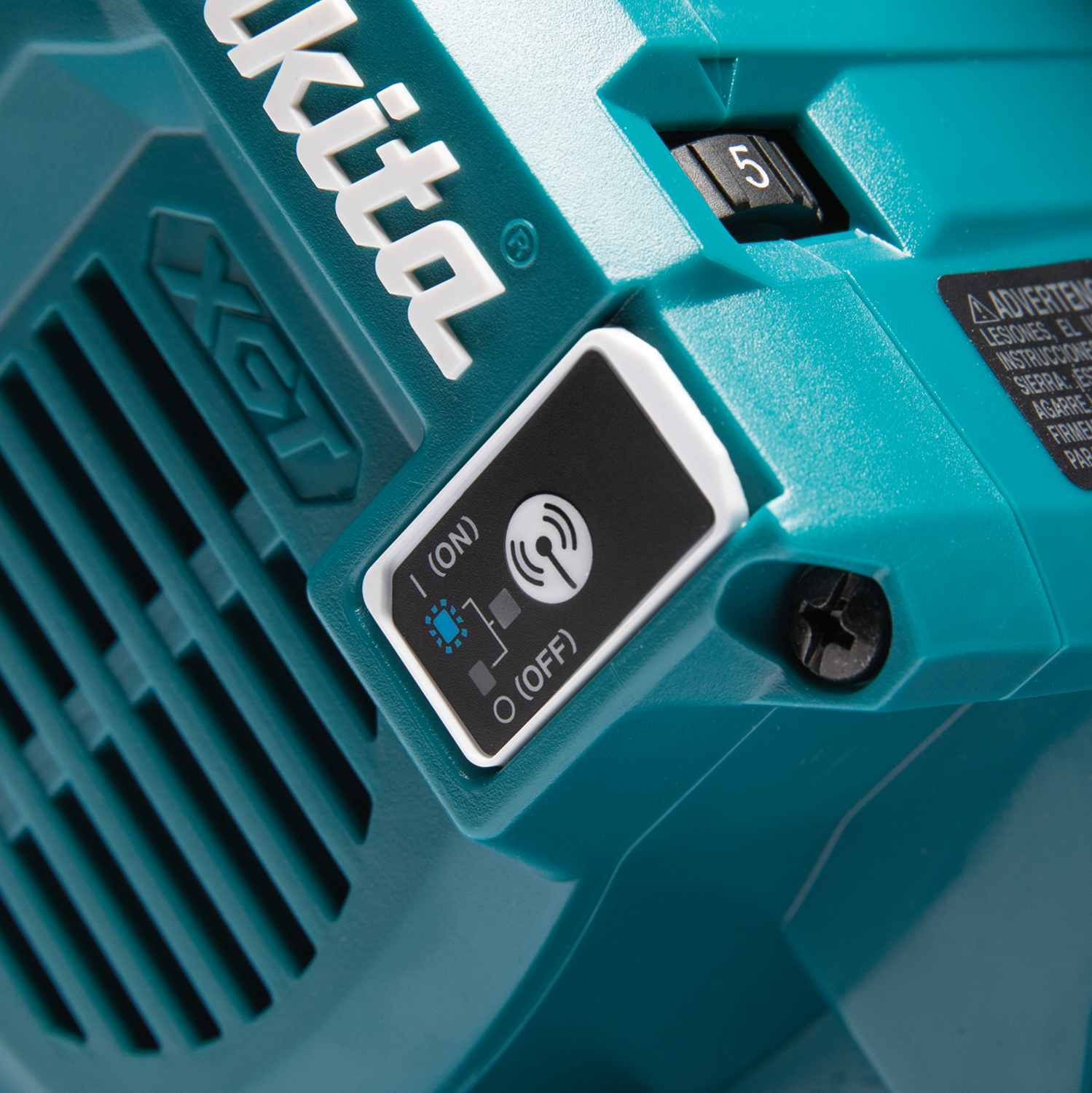

- Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
- Constant speed control provides consistent surface finish
- BL motor delivers 4,900 RPM for fast cutting and ripping
- BL motor with high power to weight and size ratio
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application

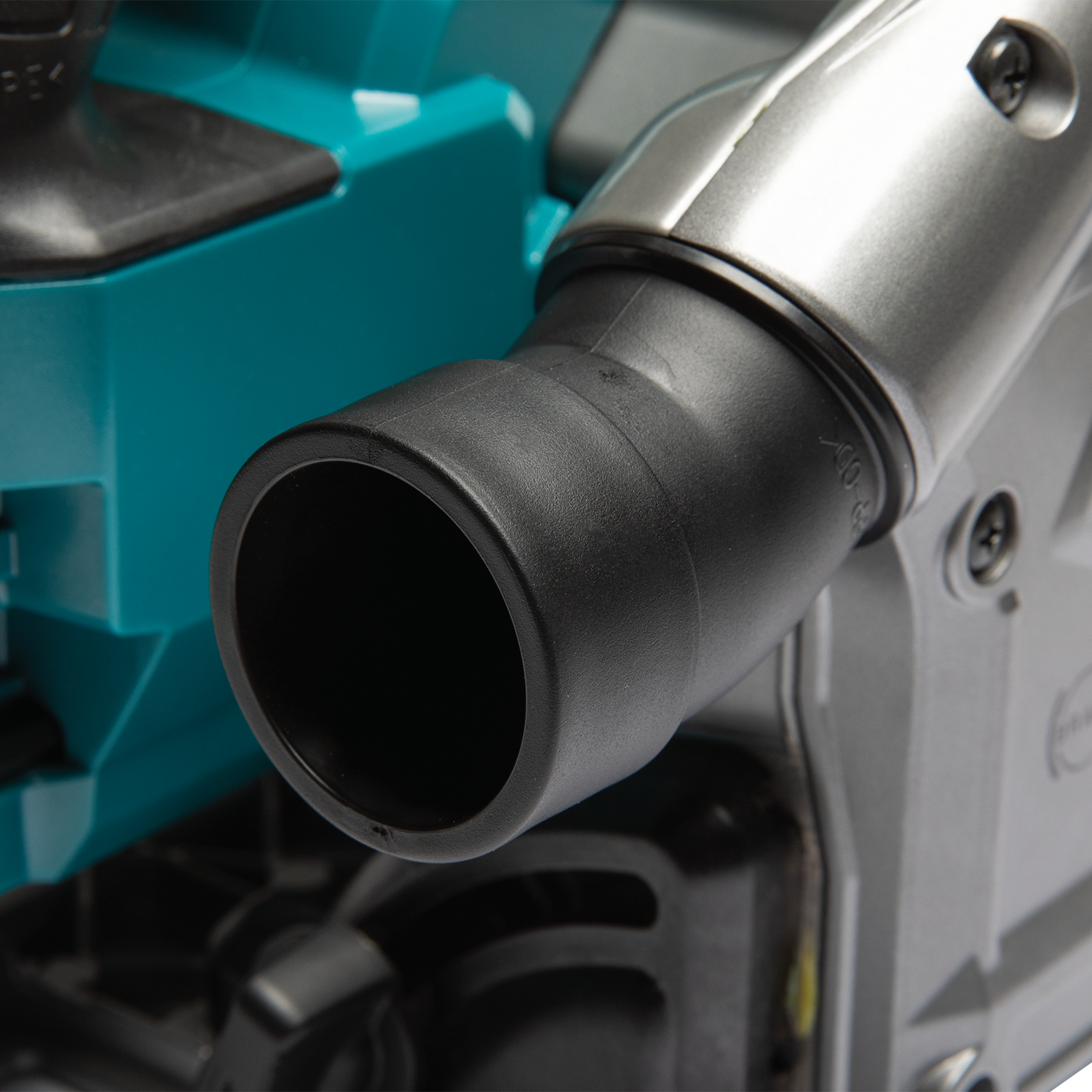

- Rotatable dust nozzle; Added two leaf springs enable to twist and lock the nozzle with a click in order to reduce unexpected rotation
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions

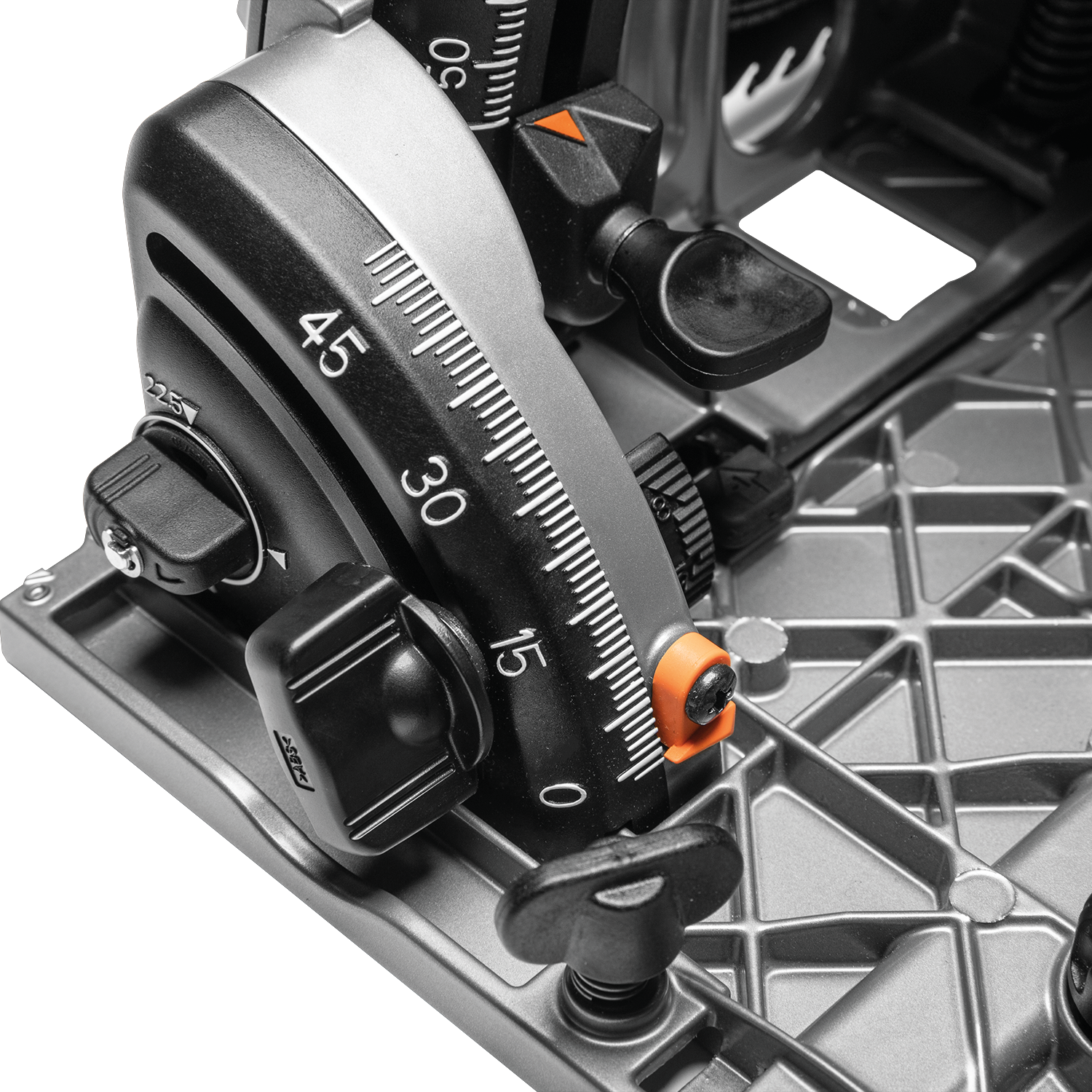

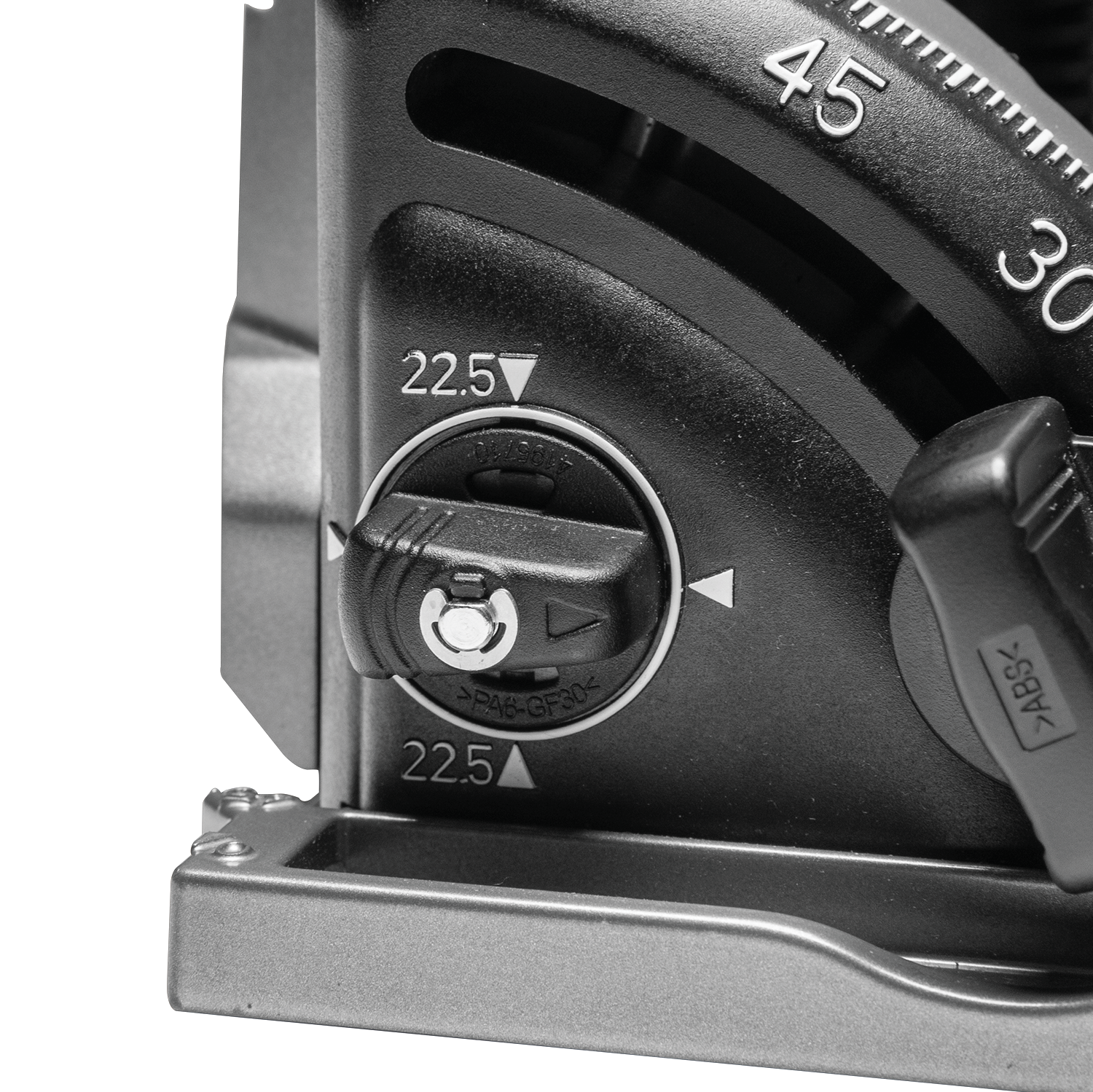

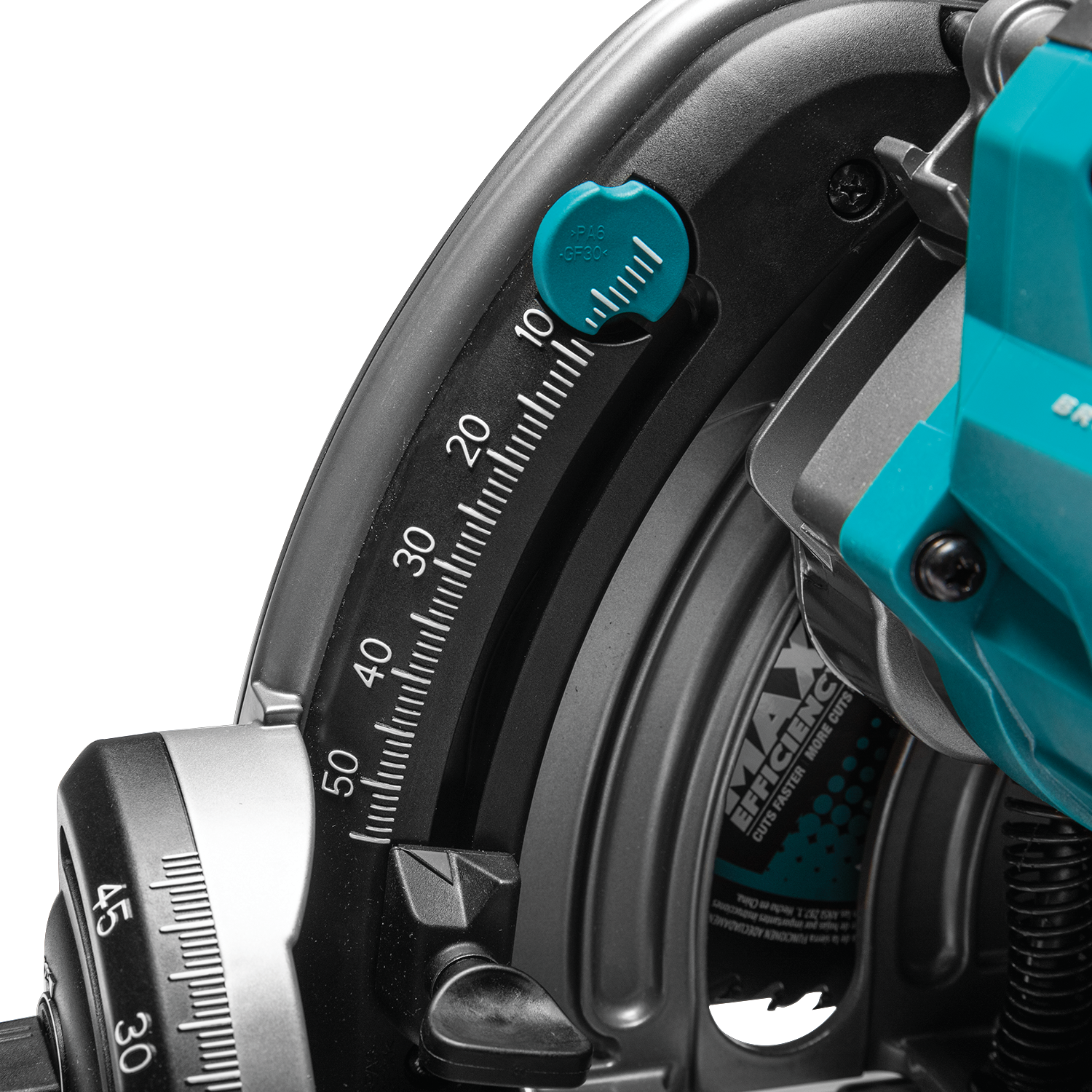

- Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° – 48°) with a positive stop at 22.5°
- Precision accurate cutting delivers a splinter-free mirror finish

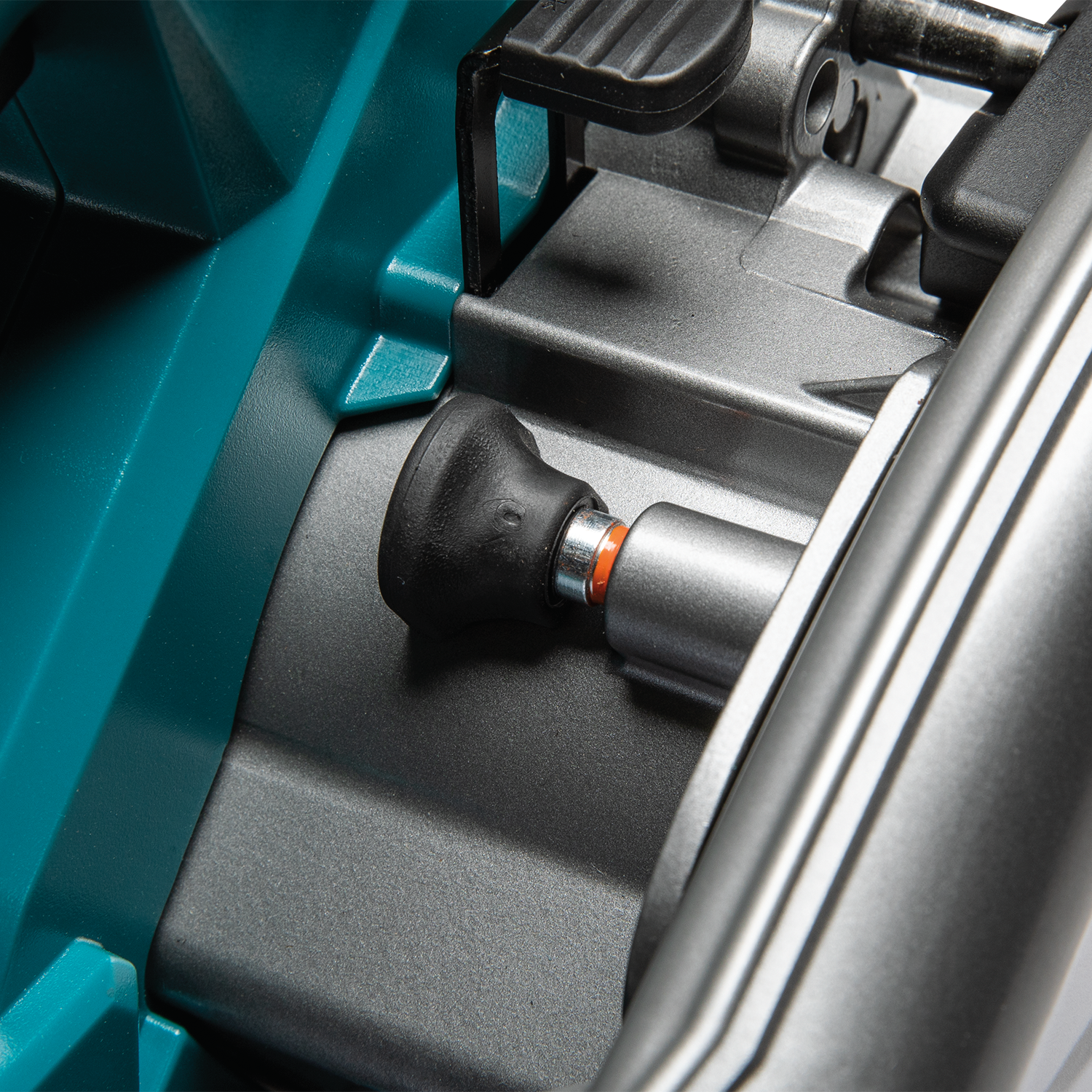

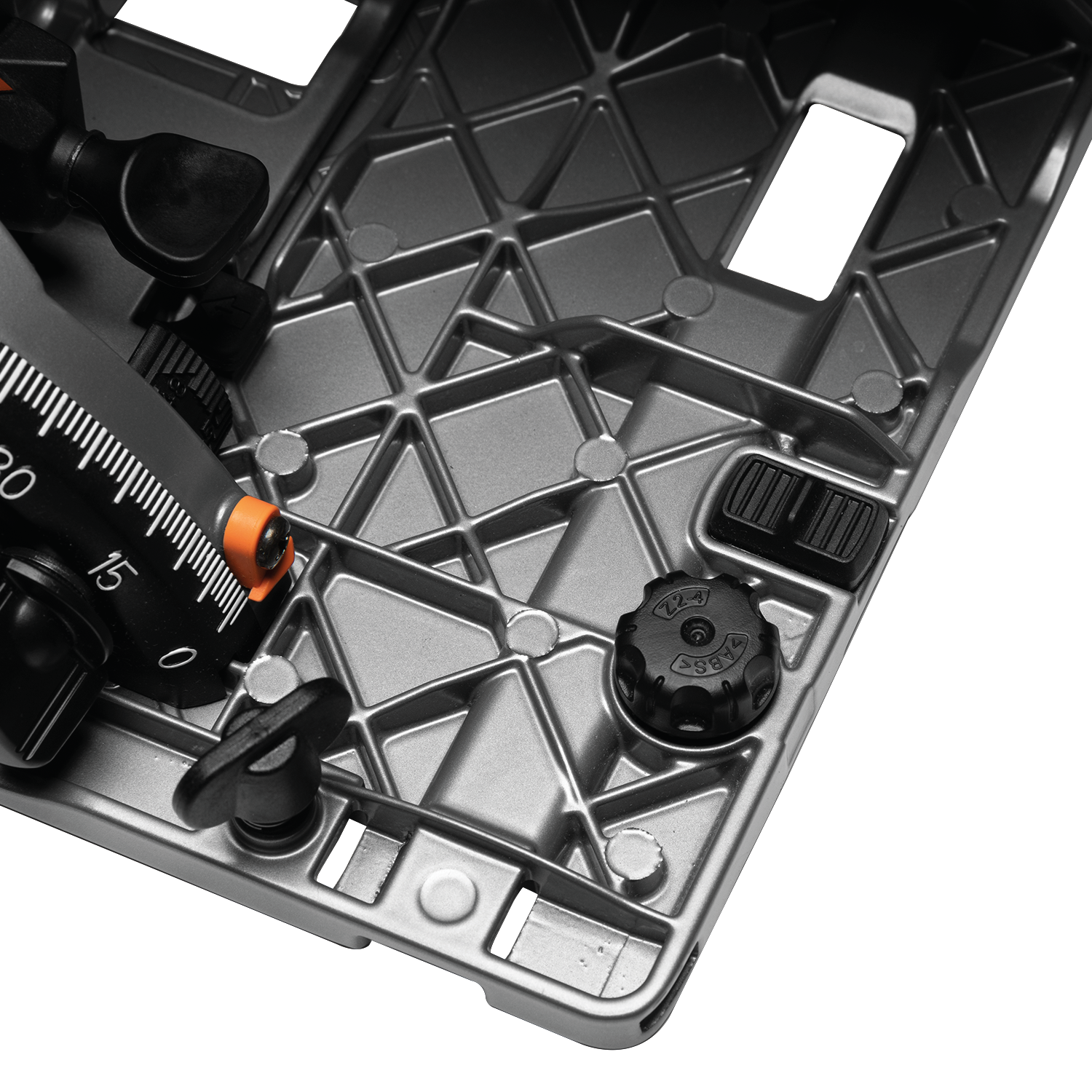

- Depth stopper for scuffing enables to easily cut a preliminary groove at a depth of 2 mm

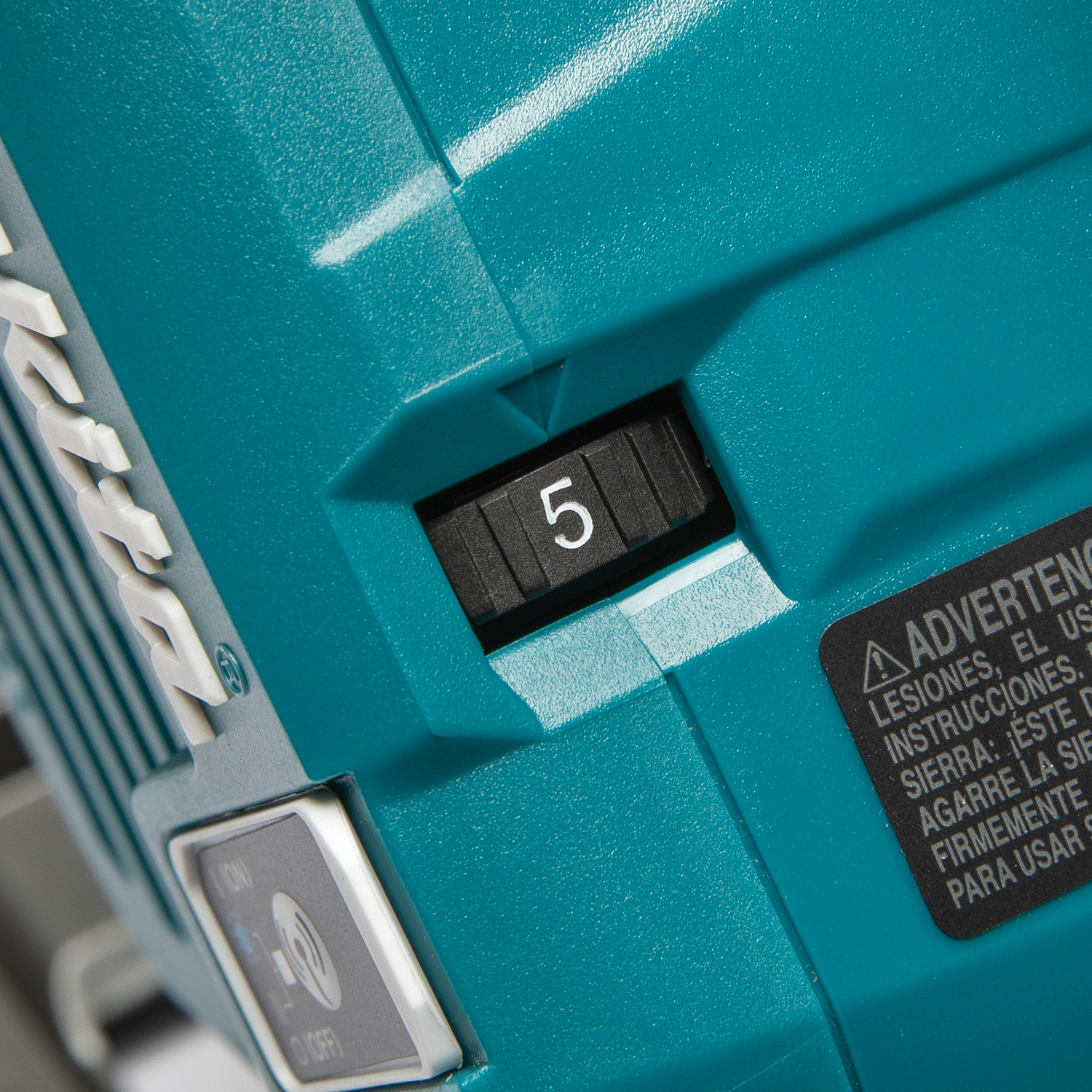

- Variable speed dial control (2,500 – 4,900 RPM) for optimum performance in a variety of materials
- Electronic soft start feature for smooth start-ups
- Easy to set depth adjustment with large scale
SPECIFICATIONS
| Blade Diameter | 165 mm (6-1/2″) |
| Bevel Angle | 1 – 48° |
| Max Cutting Capacity |
|
| 0° |
56 mm (2-3/16″) |
| 45° | 40 mm (1-9/16″) |
| 48° | 38 mm (1-1/2″) |
| No Load Speed (RPM) | 2,500 – 4,900 |
| Vibration Level | |
| Cutting Wood | 2.5 m/s² or less |
| Cutting Non-ferrous Metal | 2.5 m/s² or less |
| Sound Pressure Level | 89 dB(A) |
| Sound Power Level | 100 dB(A) |
| Noise K Factor | 3 dB(A) |
| Vibration K Factor | |
| Cutting Wood | 1.5 m/s² |
| Cutting Non-ferrous Metal | 1.5 m/s² |
| Dimensions (L x W x H) | 347 x 221 x 271 mm (13-5/8 x 8-3/4 x 10-5/8″) |
| Net weight | 4.4 – 5.0 kg (9.7 – 11.0 lbs.) |
INCLUSIONS
| TCT Blade | 1 |
| Hex Wrench |
1 |
